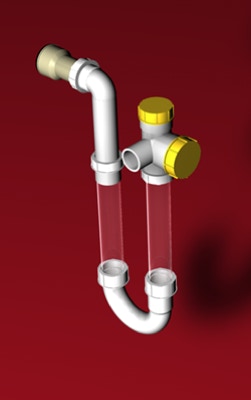

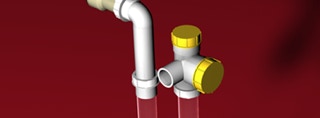

Sondersiphon pressure side, transparent  item No. 100400

The pressure side AquaKlima-Sondersiphon serves as drainage of HVAC units in wet areas in accordance with the terms of the air-conditioning techology.

The accruing condensation accumulates in a base tub then will run through a drain connection in the over pressure siphon (drain trap).Prior to commissioning, the siphon (drain trap) should be filled with water and be checked and cleaned through the sealing cap at regular intervals.

Each air or ventilation device which produces over pressure must be equipped with a Sondersiphon to ensure trouble-free operation.

To each drainage outlet a Sondersiphon should be installed separately so it can slow down freely (hygiene).

The Sondersiphon is produced from non-organic polypropylene and is resistant to frost and heat, not frost proof. This you can achieve with the help of our Siphon-trace heating.

The crystal-clear, transparent pipes produced from highquality material (17 and 18) offer an essential maintenance advantage and therefore cost savings. They permit the siphon to be observed and by this means the hygienic condition of the siphon and the unit can be monitored without effort. Next to this, the condensation flow within the siphon can be well observed. So far, the siphon had to be unscrewed and illuminated, possibly causing operating units to be shutdown. Furthermore, and especially with the overpressure drain trap, the essential water column can be detected and by this way the maintenance effort will be reduced. As it may be necessary, water can be refilled through the screw cap. Measuring even operating pressures within a unit can be carried out easily and without great technical effort due to the difference of the two water columns. With regard to hygiene requirements, our transparent Sondershiphons are applied with increasing utilisation in hospitals, laboratories, clinics, universities, etc. and have been tried and trusted for years.

Technical information:

The standard delivery version is designed for 2,200 Pascal max. In case of marginal over pressure, the extension pipe or the bend can be shortened or the siphon can be placed in a sloping position (See adjoining measurement table). A safety factor of 1.5 has been taken into account in our measurement table, to adjust pressure fluctuations within the system.

The immersion tube can be lengthened in case of higher over pressure. They are available from stock.

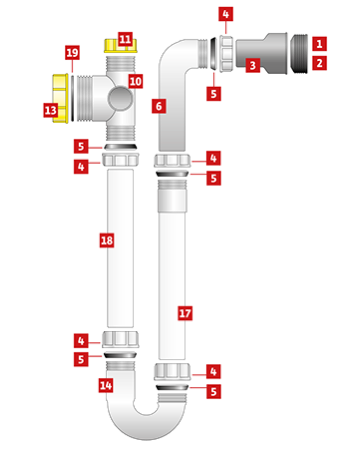

1:  Rubber sleeve diam. 30/50
for connection ¾ “ – 1”

2:  Rubber sleeve diam. 40/50
for connection 1 ¼”

3:  Connection pipe diam. 40/40
for connection 1 ½” (sealing)

4:  Coupling nut 1 ½” (5 pieces)

5:  Wedge sealing ring diam. = 40 mm
(5 pieces)

6: Bend joint diam. = 40 mm, 90°

10:  Return valve with outlet

11:  Sealing cap 1 ½”

13:  Screw cap 2”

14:  Bend diam. = 40 mm, 180°

17:  Extension pipe diam. = 40 mm,
transparent

18:  Immersion tube, diam. = 40 mm

19:  Flat seal 2”

Over press.

2200 Pascal

2100 Pascal

2000 Pascal

1900 Pascal

1800 Pascal

1700 Pascal

1600 Pascal

1500 Pascal

1400 Pascal

1300 Pascal

H (in)

400 mm

385 mm

370 mm

355 mm

340 mm

325 mm

310 mm

295 mm

280 mm

265 mm

H (out)

370 mm

355 mm

340 mm

325 mm

310 mm

295 mm

280 mm

265 mm

250 mm

235 mm

Over press.

1200 Pascal

1100 Pascal

1000 Pascal

900 Pascal

  800 Pascal

700 Pascal

  600 Pascal

500 Pascal

 400 Pascal

300 Pascal

H (in)

250 mm

235 mm

220 mm

205 mm

190 mm

175 mm

160 mm

145 mm

130 mm

115 mm

H (out)

220 mm

205 mm

190 mm

175 mm

160 mm

145 mm

130 mm

115 mm

100 mm

85 mm

The siphon connection piece is suitable for all outlets ranging from ¾“ up to 1½“ (see installation manual). Larger or smaller connections are available upon request.

Further installation of the outlet can be assembled with commercially available drainpipes, without any difficulty.
