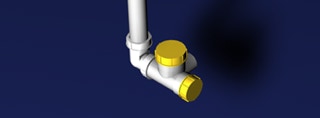

Sondersiphon suction side item No. 100100
The suction side AquaKlima-Sondersiphon serves as drainage of HVAC units in wet areas in accordance with the terms of the air-conditioning techology.
The accruing condensation accumulates in a base tub then will run through a drain connection in the under pressure siphon (drain trap). The floatball, which will be drawn backwards, enables an interference-free inlet into the siphon. As soon as the gravitation force of the water column within the siphon becomes greater than the low pressure of the unit, the float-ball will be raised up and the condensation can drain. The decrease of the water column through the drainage of the condensation will now pick up the float-ball due to the low pressure in the unit and will seal the siphon. This procedure is self-filling, self-sealing, functional in dry conditions and therefore virtually maintenance-free.
Each air or ventilation device which produces under pressure must be equipped with a Sondersiphon to ensure trouble-free operation.
To each drainage outlet a Sondersiphon should be installed separately so it can slow down freely (hygiene).
The Sondersiphon is produced from non-organic polypropylene and is resistant to frost and heat, not frost proof. This you can achieve with the help of our Siphon-trace heating.
Technical information:
The standard delivery version is designed for 3,500 Pascal max. In case of marginal low pressure, the extension pipe or the bend can be shortened or the siphon can be placed in a sloping position (See adjoining measurement table).Extension pipes for increased low pressure are available from stock.
Low press.
3500 Pascal
3400 Pascal
3300 Pascal
3200 Pascal
3100 Pascal
3000 Pascal
2900 Pascal
2800 Pascal
2700 Pascal
2600 Pascal
H (in)
410 mm
400 mm
390 mm
380 mm
370 mm
360 mm
350 mm
340 mm
330 mm
320 mm
Low press.
2500 Pascal
2400 Pascal
2300 Pascal
2200 Pascal
2100 Pascal
2000 Pascal
1900 Pascal
1800 Pascal
1700 Pascal
1600 Pascal
H (in)
310 mm
300 mm
290 mm
280 mm
270 mm
260 mm
250 mm
240 mm
230 mm
220 mm
Low press.
1500 Pascal
1400 Pascal
1300 Pascal
1200 Pascal
1100 Pascal
1000 Pascal
800 Pascal
600 Pascal
400 Pascal
200 Pascal
H (in)
210 mm
200 mm
190 mm
180 mm
170 mm
160 mm
140 mm
120 mm
100 mm
80 mm

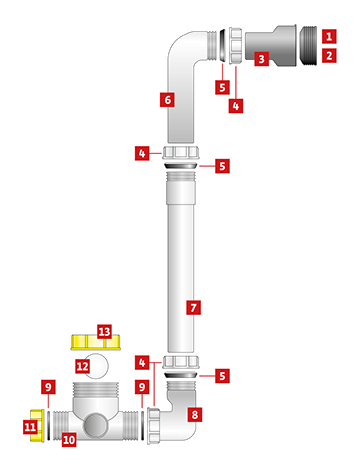

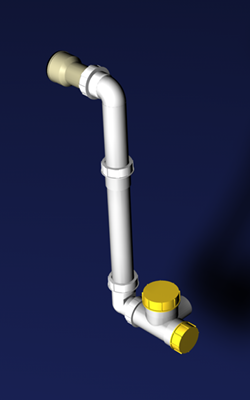

1: Rubber sleeve diam. 30/50
for connection ¾ “ – 1”
2: Rubber sleeve diam. 40/50
for connection 1 ¼”
3: Connection pipe diam. 40/40
for connection 1 ½” (sealing)
4: Coupling nut 1 ½” (4 pieces)
5: Wedge sealing ring diam. = 40 mm
(3 pieces)
6: Bend joint diam. = 40 mm, 90°
7: Extension pipe diam. = 40 mm
8: Connecting angle diam. = 40 mm, 90°
9: Flat seal 1 ½” (2 pieces)
10: Return valve with outlet
11: Sealing cap 1 ½”
12: Ball valve
13: Screw cap 2”
The siphon connection piece is suitable for all outlets ranging from ¾“ up to 1½“ (see installation manual). Larger or smaller connections are available upon request.
Further installation of the outlet can be assembled with commercially available drainpipes, without any difficulty.
